In this article I will explain with an example, how to convert (export) DataGridView to Bitmap (PNG) Image file in Windows Forms (WinForms) Application using C# and VB.Net.



Form Design

The Form consists of following controls:
DataGridView – For displaying data.
Button – For converting DataGridView to Bitmap image.
The Button has been assigned with a Click event handler.
Convert (Export) DataGridView to Bitmap (PNG) Image in C# and VB.Net



Namespaces

You will need to import the following namespaces.
C#
using System.Data;
using System.Drawing;

VB.Net
Imports System.Data
Imports System.Drawing



Binding DataGridView with dummy data in C# and VB.Net

Inside the Form Load event handler, the DataGridView is populated with dynamic DataTable.
Note: For more details on how to bind DataGridView with dynamic DataTable, please refer my article Create Dummy DataTable in Windows Forms using C# and VB.Net.

C#
private void Form1_Load(object sender, EventArgs e)
{
    DataTable dt = new DataTable();
    dt.Columns.AddRange(new DataColumn[3] {
                       new DataColumn("CustomerId", typeof(int)),
                       new DataColumn("Name", typeof(string)),
                       new DataColumn("Country",typeof(string)) });
    dt.Rows.Add(1, "John Hammond", "United States");
    dt.Rows.Add(2, "Mudassar Khan", "India");
    dt.Rows.Add(3, "Suzanne Mathews", "France");
    dt.Rows.Add(4, "Robert Schidner", "Russia");
    dataGridView1.DataSource = dt;
}

VB.Net
Private Sub Form1_Load(sender As Object, e As EventArgs) Handles Me.Load
    Dim dt As New DataTable()
    dt.Columns.AddRange(New DataColumn(2){
                        New DataColumn("CustomerId", GetType(Integer)),
                        New DataColumn("Name", GetType(String)),
                        New DataColumn("Country", GetType(String))})
    dt.Rows.Add(1, "John Hammond", "United States")
    dt.Rows.Add(2, "Mudassar Khan", "India")
    dt.Rows.Add(3, "Suzanne Mathews", "France")
    dt.Rows.Add(4, "Robert Schidner", "Russia")
    dataGridView1.DataSource = dt
End Sub



Converting DataGridView to Bitmap Image using C# and VB.Net

When the Save as Image Button is clicked, the DataGridView height is set based on the count of rows and height of the RowTemplate of DataGridView.
Then, a Bitmap class object is created where height and width of DataGridView are passed as a parameter to it.
After that, the DataGridView is drawn using DrawToBitmap method and once the DataGridView is drawn, it is resized back to its original height.
Finally, the image file is saved into a Folder (Directory) using Save method of Bitmap class.
C#
private void OnSave(object sender, EventArgs e)
{
    //Resize DataGridView to full height.
    int height = dataGridView1.Height;
    dataGridView1.Height = dataGridView1.RowCount * dataGridView1.RowTemplate.Height;

    //Create a Bitmap and draw the DataGridView on it.
    Bitmap bitmap = new Bitmap(dataGridView1.Width, dataGridView1.Height);
    dataGridView1.DrawToBitmap(bitmap, new Rectangle(0, 0, dataGridView1.Width, dataGridView1.Height));

    //Resize DataGridView back to original height.
    dataGridView1.Height = height;

    //Save the Bitmap to folder.
    bitmap.Save(@"D:\Images\DataGridView.png");
}

VB.Net
Private Sub OnSave(sender As Object, e As EventArgs) Handles btnSave.Click
    'Resize DataGridView to full height.
    Dim height As Integer = dataGridView1.Height
    dataGridView1.Height = dataGridView1.RowCount * dataGridView1.RowTemplate.Height

    'Create a Bitmap and draw the DataGridView on it.
    Dim bitmap As Bitmap = New Bitmap(Me.dataGridView1.Width, dataGridView1.Height)
    dataGridView1.DrawToBitmap(bitmap, New Rectangle(0, 0, dataGridView1.Width, dataGridView1.Height))

    'Resize DataGridView back to original height.
    dataGridView1.Height = height

    'Save the Bitmap to folder.
    bitmap.Save("D:\Images\DataGridView.png")
End Sub



Screenshot

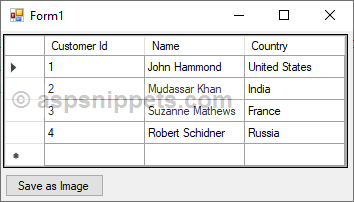

DataGridView

Convert (Export) DataGridView to Bitmap (PNG) Image in C# and VB.Net

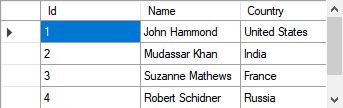

Exported Bitmap Image

Convert (Export) DataGridView to Bitmap (PNG) Image in C# and VB.Net
