In this example I will explain with an example, how to make any specific column or any one single column editable in ASP.Net GridView and keep other columns ReadOnly using C# and VB.Net.
Database
I have made use of the following table Customers with the schema as follows.
![Make one Single Specific column Editable in ASP.Net GridView]()
I have already inserted few records in the table.
![Make one Single Specific column Editable in ASP.Net GridView]()
Note: You can download the database table SQL by clicking the download link below.
HTML Markup
The below HTML Markup consists of a GridView control with AutoGenerateColumns property set to true. In order to automatically generated Edit Button, the AutoGenerateEditButton property are set to true.
The CustomerId column is set to the DataKeyNames property of GridView.
The GridView is specified with the OnRowEditing, OnRowCancelingEdit and OnRowUpdating events.
<asp:GridView ID="GridView1" runat="server" DataKeyNames="CustomerId" OnRowEditing="OnRowEditing" OnRowCancelingEdit="OnRowCancelingEdit" OnRowUpdating="OnRowUpdating" AutoGenerateEditButton="true">
</asp:GridView>
Namespaces
You will need to import the following namespaces.
C#
using System.Data;
using System.Data.SqlClient;
using System.Configuration;
VB.Net
Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration
Populating the GridView control with AutoGenerateColumns true
The GridView is populated using the records from the Customers table inside the Page Load event of the ASP.Net page.
C#
protected void Page_Load(object sender, EventArgs e)
{
if (!this.IsPostBack)
{
this.BindGrid();
}
}
private void BindGrid()
{
string constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
using (SqlConnection con = new SqlConnection(constr))
{
using (SqlCommand cmd = new SqlCommand("SELECT CustomerId, Name, Country FROM Customers"))
{
using (SqlDataAdapter sda = new SqlDataAdapter())
{
cmd.Connection = con;
sda.SelectCommand = cmd;
using (DataTable dt = new DataTable())
{
sda.Fill(dt);
GridView1.DataSource = dt;
GridView1.DataBind();
}
}
}
}
}
VB.Net
Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load
If Not Me.IsPostBack Then
Me.BindGrid()
End If
End Sub
Private Sub BindGrid()
Dim constr As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
Using con As New SqlConnection(constr)
Using cmd As New SqlCommand("SELECT CustomerId, Name, Country FROM Customers")
Using sda As New SqlDataAdapter()
cmd.Connection = con
sda.SelectCommand = cmd
Using dt As New DataTable()
sda.Fill(dt)
GridView1.DataSource = dt
GridView1.DataBind()
End Using
End Using
End Using
End Using
End Sub
![Make one Single Specific column Editable in ASP.Net GridView]()
Editing and Updating GridView records with AutoGenerateColumns true
Edit
When the Edit Button is clicked, the GridView’s OnRowEditing event handler is triggered. Here simply the EditIndex of the GridView is updated with the Row Index of the GridView Row to be edited.
C#
protected void OnRowEditing(object sender, GridViewEditEventArgs e)
{
GridView1.EditIndex = e.NewEditIndex;
this.BindGrid();
}
VB.Net
Protected Sub OnRowEditing(sender As Object, e As GridViewEditEventArgs)
GridView1.EditIndex = e.NewEditIndex
Me.BindGrid()
End Sub
Update
When the Update Button is clicked, the GridView’s OnRowUpdating event handler is triggered.
CustomerId which is the primary key is fetched from the DataKey property of GridView while the Name and Country fields are fetched from their respective columns by referencing the TextBoxes in it.
Finally an Update query is executed over the database table.
C#
protected void OnRowUpdating(object sender, GridViewUpdateEventArgs e)
{
GridViewRow row = GridView1.Rows[e.RowIndex];
int customerId = Convert.ToInt32(GridView1.DataKeys[e.RowIndex].Values[0]);
string name = (row.Cells[2].Controls[0] as TextBox).Text;
string country = (row.Cells[3].Controls[0] as TextBox).Text;
string constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
using (SqlConnection con = new SqlConnection(constr))
{
using (SqlCommand cmd = new SqlCommand("UPDATE Customers SET Name = @Name, Country = @Country WHERE CustomerId = @CustomerId"))
{
cmd.Parameters.AddWithValue("@CustomerId", customerId);
cmd.Parameters.AddWithValue("@Name", name);
cmd.Parameters.AddWithValue("@Country", country);
cmd.Connection = con;
con.Open();
cmd.ExecuteNonQuery();
con.Close();
}
}
GridView1.EditIndex = -1;
this.BindGrid();
}
VB.Net
Protected Sub OnRowUpdating(sender As Object, e As GridViewUpdateEventArgs)
Dim row As GridViewRow = GridView1.Rows(e.RowIndex)
Dim customerId As Integer = Convert.ToInt32(GridView1.DataKeys(e.RowIndex).Values(0))
Dim name As String = TryCast(row.Cells(2).Controls(0), TextBox).Text
Dim country As String = TryCast(row.Cells(3).Controls(0), TextBox).Text
Dim constr As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
Using con As New SqlConnection(constr)
Using cmd As New SqlCommand("UPDATE Customers SET Name = @Name, Country = @Country WHERE CustomerId = @CustomerId")
cmd.Parameters.AddWithValue("@CustomerId", customerId)
cmd.Parameters.AddWithValue("@Name", name)
cmd.Parameters.AddWithValue("@Country", country)
cmd.Connection = con
con.Open()
cmd.ExecuteNonQuery()
con.Close()
End Using
End Using
GridView1.EditIndex = -1
Me.BindGrid()
End Sub
Cancel Edit
When the Cancel Button is clicked, the GridView’s OnRowCancelingEdit event handler is triggered. Here the EditIndex is set to -1 and the GridView is populated with data.
C#
protected void OnRowCancelingEdit(object sender, EventArgs e)
{
GridView1.EditIndex = -1;
this.BindGrid();
}
VB.Net
Protected Sub OnRowCancelingEdit(sender As Object, e As EventArgs)
GridView1.EditIndex = -1
Me.BindGrid()
End Sub
Note: The CustomerId column is not editable (ReadOnly) because it has been set to the DataKeyNames property.

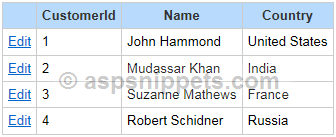

![Make one Single Specific column Editable in ASP.Net GridView]()
