In this article I will explain with an example, how to export GridView data to Word document in ASP.Net using C# and VB.Net.
This article will illustrate how to export all Pages of GridView with Paging Enabled to Word document along with formatting i.e. Styles and Colors in ASP.Net.
When the Export Button is clicked, the GridView will be rendered as an HTML string which will be later written to Response Stream and ultimately downloaded as Word document in ASP.Net.
Database
Here I am making use of Microsoft’s Northwind Database. You can download it from here.
HTML Markup
The following HTML Markup consists of an ASP.Net GridView control with three BoundField columns and a Button.
Paging has been enabled for the GridView control.
<asp:GridView ID="GridView1" HeaderStyle-BackColor="#3AC0F2" HeaderStyle-ForeColor="White"
Font-Names="Arial" Font-Size="10" RowStyle-BackColor="#A1DCF2" AlternatingRowStyle-BackColor="White"
AlternatingRowStyle-ForeColor="#000" runat="server" AutoGenerateColumns="false"
AllowPaging="true" OnPageIndexChanging="OnPageIndexChanging">
<Columns>
<asp:BoundField DataField="ContactName" HeaderText="Contact Name" ItemStyle-Width="150px" />
<asp:BoundField DataField="City" HeaderText="City" ItemStyle-Width="100px" />
<asp:BoundField DataField="Country" HeaderText="Country" ItemStyle-Width="100px" />
</Columns>
</asp:GridView>
<br />
<asp:Button ID="btnExport" runat="server" Text="Export" OnClick="ExportToWord" />
Namespaces
You will need to import the following namespaces.
C#
using System.IO;
using System.Data;
using System.Drawing;
using System.Data.SqlClient;
using System.Configuration;
VB.Net
Imports System.IO
Imports System.Data
Imports System.Drawing
Imports System.Data.SqlClient
Imports System.Configuration
Populating the GridView control
Inside the Page Load event, the GridView is populated with records from the Customers Table of the Northwind Database.
C#
protected void Page_Load(object sender, EventArgs e)
{
if (!this.IsPostBack)
{
this.BindGrid();
}
}
private void BindGrid()
{
string strConnString = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
using (SqlConnection con = new SqlConnection(strConnString))
{
using (SqlCommand cmd = new SqlCommand("SELECT * FROM Customers"))
{
using (SqlDataAdapter sda = new SqlDataAdapter())
{
cmd.Connection = con;
sda.SelectCommand = cmd;
using (DataTable dt = new DataTable())
{
sda.Fill(dt);
GridView1.DataSource = dt;
GridView1.DataBind();
}
}
}
}
}
VB.Net
Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load
If Not Me.IsPostBack Then
Me.BindGrid()
End If
End Sub
Private Sub BindGrid()
Dim strConnString As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
Using con As New SqlConnection(strConnString)
Using cmd As New SqlCommand("SELECT * FROM Customers")
Using sda As New SqlDataAdapter()
cmd.Connection = con
sda.SelectCommand = cmd
Using dt As New DataTable()
sda.Fill(dt)
GridView1.DataSource = dt
GridView1.DataBind()
End Using
End Using
End Using
End Using
End Sub
Implement Paging in GridView
The OnPageIndexChanging event handles the Pagination in the GridView.
Inside the OnPageIndexChanging event handler, the GridView’s PageIndex property is updated and the GridView is again populated from Database by making call to the BindGrid method.
C#
protected void OnPageIndexChanging(object sender, GridViewPageEventArgs e)
{
GridView1.PageIndex = e.NewPageIndex;
this.BindGrid();
}
VB.Net
Protected Sub OnPageIndexChanging(sender As Object, e As GridViewPageEventArgs)
GridView1.PageIndex = e.NewPageIndex
Me.BindGrid()
End Sub
Exporting GridView with Paging Enabled to Word document in ASP.Net
When the Export Button is clicked, first the Content Type is set in the Response Stream in order to specify the Browser that the downloading file is a Word document.
The Paging is disabled for the GridView by setting the AllowPaging property to False and the GridView is again populated with records from the Database.
Then a loop is executed over the GridView rows and the style and formatting are applied to the Row and Alternating Row of the GridView control.
CSS class named textmode is applied to each cell of the GridView. This class makes sure that all the contents are rendered in Text format (mso number format).
Note: The mso number format style prevents large numbers from getting converted to exponential values.
C#
protected void ExportToWord(object sender, EventArgs e)
{
Response.Clear();
Response.Buffer = true;
Response.AddHeader("content-disposition", "attachment;filename=GridViewExport.doc");
Response.Charset = "";
Response.ContentType = "application/vnd.ms-word";
using (StringWriter sw = new StringWriter())
{
HtmlTextWriter hw = new HtmlTextWriter(sw);
//Set to False in order to export all Pages.
GridView1.AllowPaging = false;
this.BindGrid();
GridView1.HeaderRow.BackColor = Color.White;
foreach (TableCell cell in GridView1.HeaderRow.Cells)
{
cell.BackColor = GridView1.HeaderStyle.BackColor;
}
foreach (GridViewRow row in GridView1.Rows)
{
row.BackColor = Color.White;
foreach (TableCell cell in row.Cells)
{
if (row.RowIndex % 2 == 0)
{
cell.BackColor = GridView1.AlternatingRowStyle.BackColor;
}
else
{
cell.BackColor = GridView1.RowStyle.BackColor;
}
cell.CssClass = "textmode";
}
}
GridView1.RenderControl(hw);
//Style to format numbers to String.
string style = @"<style> .textmode { } </style>";
Response.Write(style);
Response.Output.Write(sw.ToString());
Response.Flush();
Response.End();
}
}
public override void VerifyRenderingInServerForm(Control control)
{
/* Verifies that the control is rendered */
}
VB.Net
Protected Sub ExportToWord(sender As Object, e As EventArgs)
Response.Clear()
Response.Buffer = True
Response.AddHeader("content-disposition", "attachment;filename=GridViewExport.doc")
Response.Charset = ""
Response.ContentType = "application/vnd.ms-word"
Using sw As New StringWriter()
Dim hw As New HtmlTextWriter(sw)
'Set to False in order to export all Pages.
GridView1.AllowPaging = False
Me.BindGrid()
GridView1.HeaderRow.BackColor = Color.White
For Each cell As TableCell In GridView1.HeaderRow.Cells
cell.BackColor = GridView1.HeaderStyle.BackColor
Next
For Each row As GridViewRow In GridView1.Rows
row.BackColor = Color.White
For Each cell As TableCell In row.Cells
If row.RowIndex Mod 2 = 0 Then
cell.BackColor = GridView1.AlternatingRowStyle.BackColor
Else
cell.BackColor = GridView1.RowStyle.BackColor
End If
cell.CssClass = "textmode"
Next
Next
GridView1.RenderControl(hw)
'Style to format numbers to String.
Dim style As String = "<style> .textmode { } </style>"
Response.Write(style)
Response.Output.Write(sw.ToString())
Response.Flush()
Response.[End]()
End Using
End Sub
Public Overrides Sub VerifyRenderingInServerForm(control As Control)
' Verifies that the control is rendered
End Sub
Screenshots

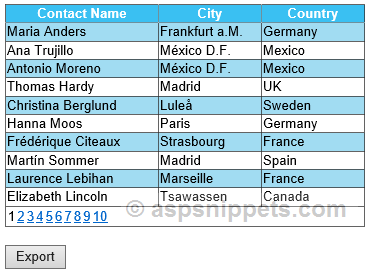

The GridView with formatting
![Export GridView data to Word document in ASP.Net using C# and VB.Net]()
The Exported Word Document
![Export GridView data to Word document in ASP.Net using C# and VB.Net]()
