In this article I will explain with an example, how to implement Fileupload validation using Model Data Annotation in ASP.Net Core (.Net Core) MVC.
HTML Fileupload element validation will allow upload of only certain files by filtering them using their extensions. This filtering of files will be done using the Regular Expression Data Annotation attribute in Model class.
Note: For beginners in ASP.Net Core (.Net Core 7), please refer my article ASP.Net Core 7: Hello World Tutorial with Sample Program example.



Regular Expression

The following Regular Expression is used for validating the selected file in HTML Fileupload element using its extension.
The Regular Expression can be modified to be used for multiple File extensions by simply adding and removing the extensions.
Note: The File Extensions must be separated by Pipe (|) character and must be prefixed with Dot (.) character.


Regular Expression for allowing Word Document and PDF files only

([a-zA-Z0-9\s_\\.\-:])+(.doc|.docx|.pdf)$


Regular Expression for allowing Image files only

([a-zA-Z0-9\s_\\.\-:])+(.png|.jpg|.gif)$


Regular Expression for allowing Text files only

([a-zA-Z0-9\s_\\.\-:])+(.txt)$


Regular Expression for allowing Excel files only

([a-zA-Z0-9\s_\\.\-:])+(.xls|.xlsx)$

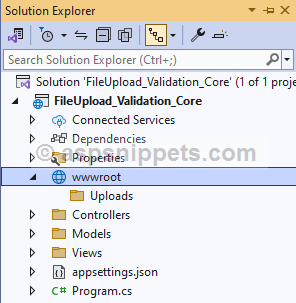

Uploads Folder Location

The file will be saved inside the Directory (Folder) named Uploads of wwwroot Directory (Folder).
ASP.Net Core: Fileupload validation using Model Data Annotations



Model

The following Model class consists of one property PostedFile.
The property is decorated with the following Data Annotation attributes for performing validations.
1. Required Data Annotation attribute.
2. RegularExpression Data Annotation attribute.
Note: The Data Annotations attributes can be used with the Entity Data Model (EDM), LINQ to SQL, and other data models.

The RegularExpression Data Annotation attribute accepts the Regular Expression as first parameter.
The Regular Expression will allow only Image files of type PNG, JPG and GIF.
The Required Data Annotation and the Regular Expression Data Annotation attributes have been specified with a property ErrorMessage with a string value. As the name suggests, this string value will be displayed to the user when the respective validation fails.
public class FileModel
{
    [Required(ErrorMessage = "Please select file.")]
    [RegularExpression(@"([a-zA-Z0-9\s_\\.\-:])+(.png|.jpg|.gif)$", ErrorMessage = "Only Image files allowed.")]
    public IFormFile PostedFile{ get; set; }
}



Controller

The Controller consists of following Action methods.

Action method for handling GET operation

Inside this Action method, simply the View is returned.


Action method for handling POST operation

This Action method accepts the IFormFile class object as a parameter.
Note: The name of the IFormFile parameter and the name of HTML FileUpload element must be exact same, otherwise the IFormFile parameter will be NULL.

Inside this Action method, first a check is performed whether the Folder (Directory) exists, if not then the Directory (Folder) is created using IWebHostEnvironment interface.
Note: For more details about IWebHostEnvironment interface, please refer my article Using IWebHostEnvironment in ASP.Net Core.

After that, if object of IFormFile is not NULL then an object of FileStream class is created which accepts the path of the Folder (Directory) named Uploads as a parameter.
Then, using Copy method of IFormFile class which accepts the FileStream class object as parameter which saved the selected file to the Folder (Directory) named Uploads.
Note: For more details on how to access Static Files in ASP.Net Core, please refer my article Static Files (Images, CSS and JS files) in ASP.Net Core.

Finally, the success message along with the file name is set into a ViewBag object.
public class HomeController : Controller
{
    private IWebHostEnvironment Environment;

    public HomeController(IWebHostEnvironment _environment)
    {
        this.Environment = _environment;
    }

    public IActionResult Index()
    {
        return View();
    }

    [HttpPost]
    public IActionResult Index(IFormFile postedFile)
    {
        string wwwPath = this.Environment.WebRootPath;
        string contentPath = this.Environment.ContentRootPath;

        string path = Path.Combine(this.Environment.WebRootPath,"Uploads");
        if (!Directory.Exists(path))
        {
            Directory.CreateDirectory(path);
        }

        if (postedFile != null)
        {
            string fileName = Path.GetFileName(postedFile.FileName);
            using (FileStream stream = new FileStream(Path.Combine(path,fileName), FileMode.Create))
            {
                 postedFile.CopyTo(stream);
                 ViewBag.Message += string.Format("<b>{0}</b> uploaded.<br />", fileName);
            }
        }
        return View();
    }
}



View

HTML Markup

Inside the View, in the very first line the FileModel class is declared as Model for the View.
The View consists of an HTML Form which has been created using following ASP.Net Tag Helpers attributes.
asp-action – Name of the Action. In this case the name is Index.
asp-controller – Name of the Controller. In this case the name is Home.
method – It specifies the Form Method i.e. GET or POST. In this case it will be set to POST.
HtmlAttributes – This array allows to specify the additional Form Attributes. Here we need to specify enctype = “multipart/form-data” which is necessary for uploading Files.

Implementing Validation

The Form consists of a FileUpload element, two HTML SPAN and a Submit Button.
The FileUpload element has been set with the following Tag Helpers attribute:-
asp-for – The Model property to which validation will be performed. In this case PostedFile.
The HTML SPAN have been set with the following Tag Helpers attribute:-
asp-validation-for – Displaying the validation message for the Model property.

Another SPAN element will be used to display the success message set into a ViewBag object using Html.Raw Helper Method when file is saved.


Enabling Client-Side validations

By default, the validations using Data Annotations and Model class is performed on Server Side.
In order to enable Client-Side validations, you will need to inherit the following script files.
1. jquery.min.js
2. jquery.validate.js
3. jquery.validate.unobtrusive.js
Once, the above files are inherited automatically, the Client-Side validations using Data Annotations is enabled.
@model FileUpload_Validation_Core.Models.FileModel
@addTagHelper*,Microsoft.AspNetCore.Mvc.TagHelpers
@{
     Layout = null;
}

<!DOCTYPE html>

<html>
<head>
    <meta name="viewport" content="width=device-width" />
    <title>Index</title>
</head>
<body>
    <form asp-action="Index" asp-controller="Home" method="post" enctype="multipart/form-data">
        <span>Select File:</span>
        <input type="file" asp-for="PostedFile" name="PostedFile" />
        <br />
        <span asp-validation-for="PostedFile" style="color:red"></span>
        <hr />
        <input type="submit" value="Upload" />
        <br />
        <span style=" color:green">@Html.Raw(ViewBag.Message)</span>
    </form>
    <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.6.0/jquery.js"></script>
    <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/jquery-validate/1.19.3/jquery.validate.js"></script>
    <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/jquery-validation-unobtrusive/3.2.12/jquery.validate.unobtrusive.js"></script>
</body>
</html>



Screenshot

ASP.Net Core: Fileupload validation using Model Data Annotations
