In this article I will explain how to find and access controls in GridView EmptyDataTemplate (Empty Row) in ASP.Net using C# and VB.Net.
You might also like to read:

HTML Markup
The HTML Markup consists of a GridView, a Button and placed a Label control inside the GridView EmptyDataTemplate.
<asp:GridView ID="GridView1" HeaderStyle-BackColor="#3AC0F2" HeaderStyle-ForeColor="White"
    runat="server" AutoGenerateColumns="false">
    <Columns>
        <asp:BoundField DataField="Name" HeaderText="Name" ItemStyle-Width="150" />
        <asp:BoundField DataField="Country" HeaderText="Country" ItemStyle-Width="150" />
    </Columns>
    <EmptyDataTemplate>
        <asp:Label ID = "lblEmptyMessage" Text="" runat="server" />
    </EmptyDataTemplate>
</asp:GridView>
<br />
<asp:Button ID = "btnClear" Text="Clear GridView" runat="server" OnClick = "Clear" />


Namespaces
You will need to import the following namespaces
C#
using System.Data;

VB.Net
Imports System.Data


Binding the GridView
The GridView is populated using some dummy records using DataTable.
C#
protected void Page_Load(object sender, EventArgs e)
{
    if (!this.IsPostBack)
    {
        DataTable dt = new DataTable();
        dt.Columns.AddRange(new DataColumn[3] { new DataColumn("Id"), new DataColumn("Name"), new DataColumn("Country") });
        dt.Rows.Add(1, "John Hammond", "United States");
        dt.Rows.Add(2, "Mudassar Khan", "India");
        dt.Rows.Add(3, "Suzanne Mathews", "France");
        dt.Rows.Add(4, "Robert Schidner", "Russia");
        GridView1.DataSource = dt;
        GridView1.DataBind();
    }
}

VB.Net
Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load
    If Not Me.IsPostBack Then
        Dim dt As New DataTable()
        dt.Columns.AddRange(New DataColumn(2) {New DataColumn("Id"), New DataColumn("Name"), New DataColumn("Country")})
        dt.Rows.Add(1, "John Hammond", "United States")
        dt.Rows.Add(2, "Mudassar Khan", "India")
        dt.Rows.Add(3, "Suzanne Mathews", "France")
        dt.Rows.Add(4, "Robert Schidner", "Russia")
        GridView1.DataSource = dt
        GridView1.DataBind()
    End If
End Sub


Find and Access controls in GridView EmptyDataTemplate
The following event handler is executed when the Button is clicked, here I am setting the GridView DataSource to NULL so that we can see the empty data row.
Then I am searching for the Label control within the GridView EmptyDataTemplate and setting the empty message to be displayed.
C#
protected void Clear(object sender, EventArgs e)
{
    GridView1.DataSource = null;
    GridView1.DataBind();
    Label lblEmptyMessage = GridView1.Controls[0].Controls[0].FindControl("lblEmptyMessage") as Label;
    lblEmptyMessage.Text = "Currently there are no records in system.";
}

VB.Net
Protected Sub Clear(sender As Object, e As EventArgs)
    GridView1.DataSource = Nothing
    GridView1.DataBind()
    Dim lblEmptyMessage As Label = TryCast(GridView1.Controls(0).Controls(0).FindControl("lblEmptyMessage"), Label)
    lblEmptyMessage.Text = "Currently there are no records in system."
End Sub

Here Controls[0] is the Child Table within the GridView and the next Controls[0] is the GridView EmptyDataTemplate Row.
C#
Label lblEmptyMessage = GridView1.Controls[0].Controls[0].FindControl("lblEmptyMessage") as Label;

VB.Net
Dim lblEmptyMessage As Label = TryCast(GridView1.Controls(0).Controls(0).FindControl("lblEmptyMessage"), Label)

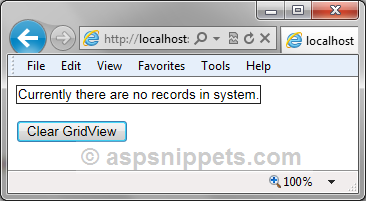

Find and access controls in GridView EmptyDataTemplate (Empty Row) in ASP.Net
