In this article I will explain how to perform Bulk Insert records and Update existing rows if record exists using C# and VB.Net.
SqlBulkCopy as the name suggest is for copying (inserting) bulk records and it cannot perform update operation. Hence comes Table Valued Parameter to the rescue, which allows us to pass multiple records using a DataTable to a Stored Procedure where we can do the processing.

Database
I have made use of the following table Customers with the schema as follows.
SqlBulkCopy- Bulk Insert records and Update existing rows if record exists using ASP.Net, C# and VB.Net

I have already inserted few records in the table.
SqlBulkCopy- Bulk Insert records and Update existing rows if record exists using ASP.Net, C# and VB.Net

Then I have created a User Defined Table Type in SQL Server using the following query
CREATE TYPE [dbo].[CustomerType] AS TABLE(
      [Id] [int] NULL,
      [Name] [varchar](100) NULL,
      [Country] [varchar](50) NULL
)
GO

Once created the User Defined Type will be visible in the Object Explorer as shown below.
SqlBulkCopy- Bulk Insert records and Update existing rows if record exists using ASP.Net, C# and VB.Net

Finally the following stored procedure is created which will accept the DataTable as parameter and then will insert all records into the table that are not present in the table and the one that already exists will be updated.
SQL Server 2008 or higher versions
SQL Server 2008 came up with a nice function called MERGE, which allows to perform INSERT operation when records are not present and UPDATE when records are present in the table.
CREATE PROCEDURE [dbo].[Update_Customers]
      @tblCustomers CustomerType READONLY
AS
BEGIN
      SET NOCOUNT ON;

      MERGE INTO Customers c1
      USING @tblCustomers c2
      ON c1.CustomerId=c2.Id
      WHEN MATCHED THEN
      UPDATE SET c1.Name = c2.Name
            ,c1.Country = c2.Country
      WHEN NOT MATCHED THEN
      INSERT VALUES(c2.Id, c2.Name, c2.Country);
END

SQL Server 2005 version
The below Stored Procedure can be used where in the SQL Server version 2005 where MERGE function is not supported. It first performs UPDATE using INNER JOIN and then INSERTS all records that are not present in the table.
CREATE PROCEDURE [dbo].[Update_Customers]
      @tblCustomers CustomerType READONLY
AS
BEGIN
      SET NOCOUNT ON;
      --UPDATE EXISTING RECORDS
      UPDATE Customers
      SET Name = c2.Name
      ,Country = c2.Country
      FROM Customers c1
      INNER JOIN @tblCustomers c2
      ON c1.CustomerId = c2.Id

      --INSERT NON-EXISTING RECORDS
      INSERT INTO Customers
      SELECT Id, Name, Country
      FROM @tblCustomers
      WHERE Id NOT IN(SELECT CustomerId FROM Customers)
END

Note: The SQL for creating the Table and Stored Procedures is provided in the attached sample code.


HTML Markup
The HTML Markup consists of an ASP.Net GridView and a Button for inserting and updating bulk data from GridView to SQL Server Database table.
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="false">
<Columns>
    <asp:BoundField DataField="Id" HeaderText="Id" ItemStyle-Width="30" />
    <asp:BoundField DataField="Name" HeaderText="Name" ItemStyle-Width="150" />
    <asp:TemplateField>
        <ItemTemplate>
            <asp:TextBox ID="txtCountry" Text='<%# Eval("Country") %>' runat="server" />
        </ItemTemplate>
    </asp:TemplateField>
</Columns>
</asp:GridView>
<br />
<asp:Button Text="Bulk Update" OnClick="Bulk_Update" runat="server" />


Namespaces
You will need to import the following namespaces.
C#
using System.Data;
using System.Data.SqlClient;
using System.Configuration;

VB.Net
Imports System.Data
Imports System.Data.SqlClient
Imports System.Configuration

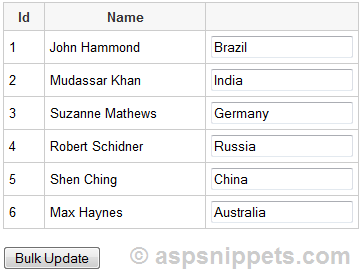

Populating the GridView
In this article I am populating the GridView using the following XML file in the Page Load event. The first 4 records are already present in the Table, the only difference is that the countries of some records are modified for illustrating the bulk update operation.
<?xmlversion="1.0"standalone="yes"?>
<Customers>
    <Customer>
        <Id>1</Id>
        <Name>John Hammond</Name>
        <Country>Brazil</Country>
    </Customer>
    <Customer>
        <Id>2</Id>
        <Name>Mudassar Khan</Name>
        <Country>India</Country>
    </Customer>
    <Customer>
        <Id>3</Id>
        <Name>Suzanne Mathews</Name>
        <Country>Germany</Country>
    </Customer>
    <Customer>
        <Id>4</Id>
        <Name>Robert Schidner</Name>
        <Country>Russia</Country>
    </Customer>
    <Customer>
        <Id>5</Id>
        <Name>Shen Ching</Name>
        <Country>China</Country>
    </Customer>
    <Customer>
        <Id>6</Id>
        <Name>Max Haynes</Name>
        <Country>Australia</Country>
    </Customer>
</Customers>

C#
protected void Page_Load(object sender, EventArgs e)
{
    if (!this.IsPostBack)
    {
        DataSet ds = new DataSet();
        ds.ReadXml(Server.MapPath("~/Customers.xml"));
        GridView1.DataSource = ds.Tables[0];
        GridView1.DataBind();
    }
}

VB.Net
Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load
    If Not Me.IsPostBack Then
        Dim ds As New DataSet()
        ds.ReadXml(Server.MapPath("~/Customers.xml"))
        GridView1.DataSource = ds.Tables(0)
        GridView1.DataBind()
    End If
End Sub

SqlBulkCopy- Bulk Insert records and Update existing rows if record exists using ASP.Net, C# and VB.Net


Bulk Insert records and Update existing rows if record exists
The following event handler is executed on the click of the Button. Here first a DataTable is created with column schema same as that of the User Defined Table Type that was created and then a loop is executed of the GridView rows.
Inside the loop, the values of the cells of the rows are fetched and are inserted into the DataTable.
Finally the Stored Procedure is executed with the DataTable passed as parameter to it.
C#
protected void Bulk_Update(object sender, EventArgs e)
{
    DataTable dt = new DataTable();
    dt.Columns.AddRange(new DataColumn[3] { new DataColumn("Id", typeof(int)),
                new DataColumn("Name", typeof(string)),
                new DataColumn("Country",typeof(string)) });
    foreach (GridViewRow row in GridView1.Rows)
    {
        int id = int.Parse(row.Cells[0].Text);
        string name = row.Cells[1].Text;
        string country = (row.FindControl("txtCountry") as TextBox).Text;
        dt.Rows.Add(id, name, country);
    }
    string constr = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
    using (SqlConnection con = new SqlConnection(constr))
    {
        using (SqlCommand cmd = new SqlCommand("Update_Customers"))
        {
            cmd.CommandType = CommandType.StoredProcedure;
            cmd.Connection = con;
            cmd.Parameters.AddWithValue("@tblCustomers", dt);
            con.Open();
            cmd.ExecuteNonQuery();
            con.Close();
        }
    }
}

VB.Net
Protected Sub Bulk_Update(sender As Object, e As EventArgs)
    Dim dt As New DataTable()
    dt.Columns.AddRange(New DataColumn(2) {New DataColumn("Id", GetType(Integer)), _
                                           New DataColumn("Name", GetType(String)), _
                                           New DataColumn("Country", GetType(String))})
    For Each row As GridViewRow In GridView1.Rows
        Dim id As Integer = Integer.Parse(row.Cells(0).Text)
        Dim name As String = row.Cells(1).Text
        Dim country As String = TryCast(row.FindControl("txtCountry"), TextBox).Text
        dt.Rows.Add(id, name, country)
    Next
    Dim constr As String = ConfigurationManager.ConnectionStrings("constr").ConnectionString
    Using con As New SqlConnection(constr)
        Using cmd As New SqlCommand("Update_Customers")
            cmd.CommandType = CommandType.StoredProcedure
            cmd.Connection = con
            cmd.Parameters.AddWithValue("@tblCustomers", dt)
            con.Open()
            cmd.ExecuteNonQuery()
            con.Close()
        End Using
    End Using
End Sub


Screenshot

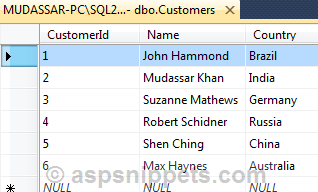

The following screenshot displays the Customers table containing the updated as well as the inserted records.
SqlBulkCopy- Bulk Insert records and Update existing rows if record exists using ASP.Net, C# and VB.Net
